ESP32 2.8" TFT LCD Display Module ESP32-2432S028R Resistive Touch

Key Features

• Resistive Touch Input — The screen uses resistive touch, so input is read from pressure on the panel.
• Dual-Core ESP32 Module — An ESP32-WROOM-32 module runs a dual-core MCU at up to 240MHz, with built-in Wi-Fi and Bluetooth.
• TF-Card Expansion Slot — A TF-card slot adds expansion storage to the module.
• Arduino Library Support — Arduino library functions and sample programs are provided to speed up development.
• Factory Sample Program — The sample program is already programmed at the factory.

Product Specifications

• Screen size: 2.8 in
• Display type: TFT
• Color: RGB 65K color
• Resolution: 320 x 240 pixels
• Touch: Resistive touch
• Driver chip: ILI9341
• Operating voltage: 5V
• Operating temperature: -20C~70℃
• Board size: 50.0 x 86.0 mm

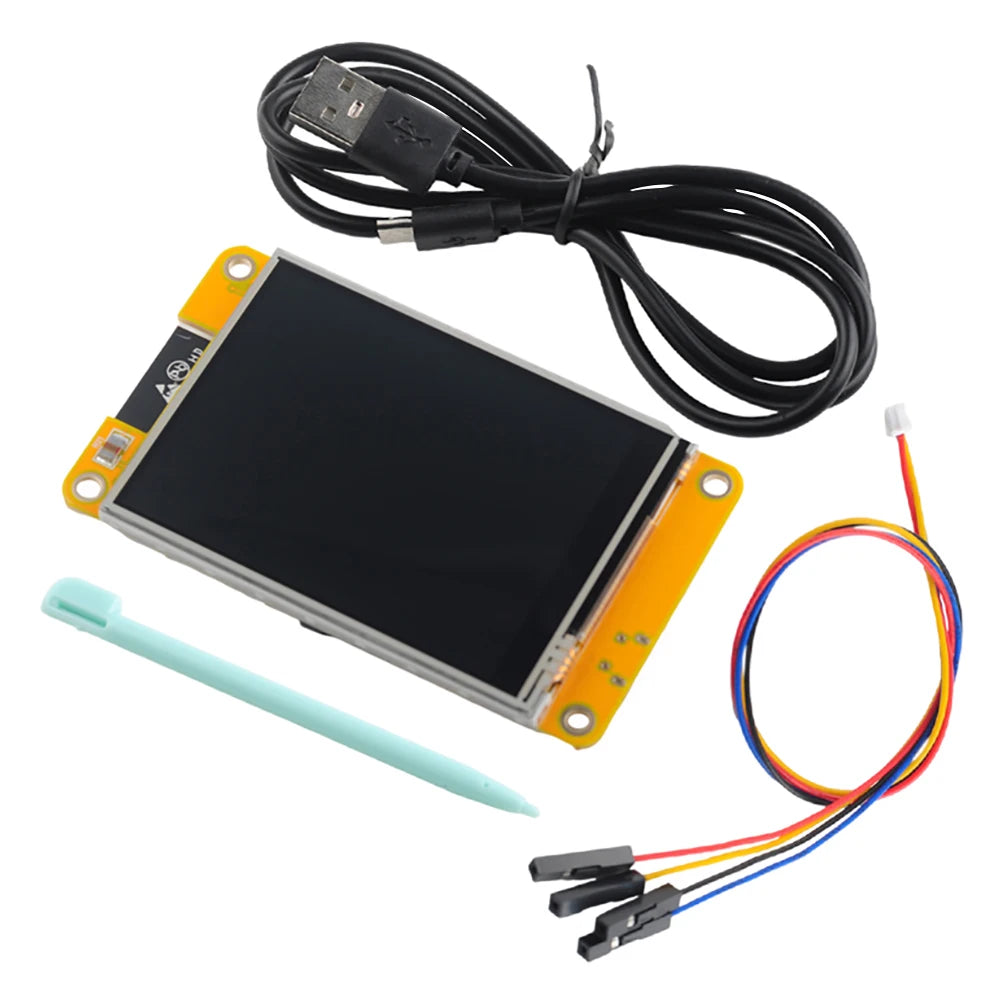

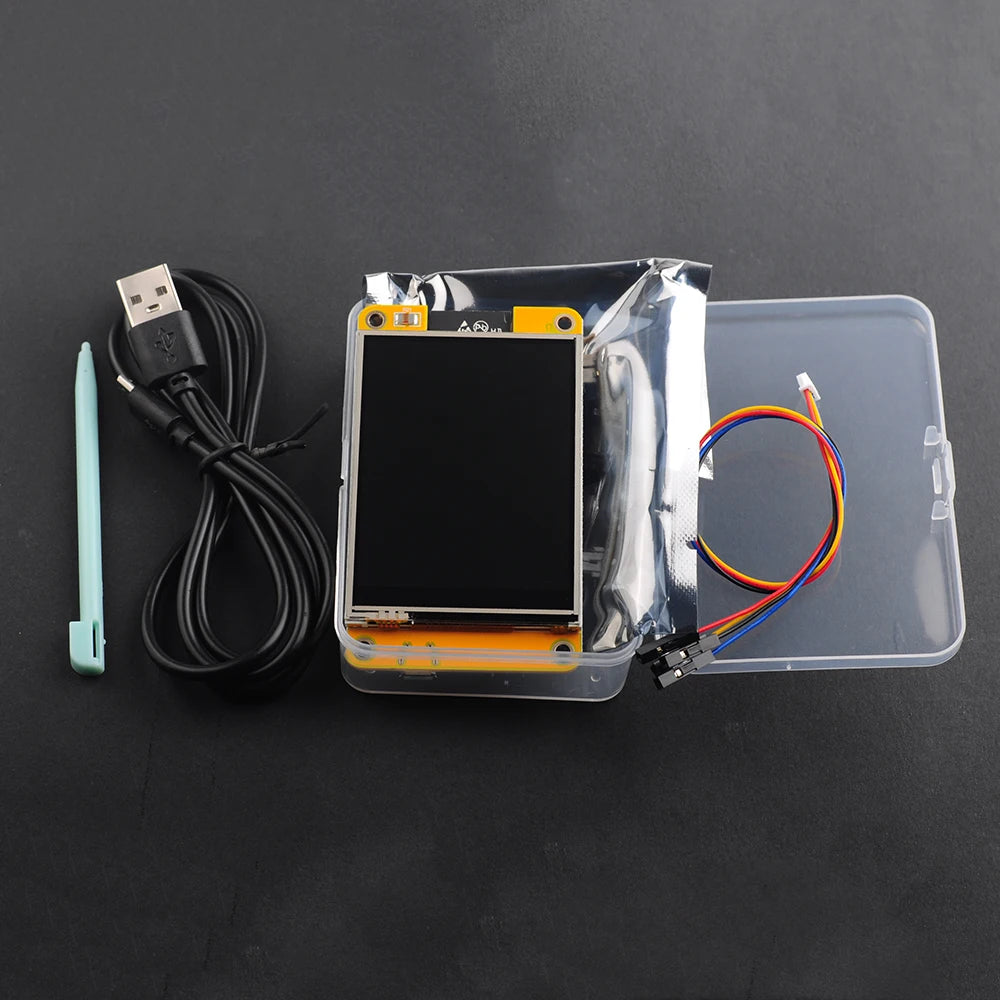

• Package contents: 1 display module, 1 USB cable, 1 4P connector cable, 1 plastic packaging box
• Part numbers: ESP32-2432S028R, 240X320

What It Is / How It Works

This is a 2.8-inch TFT LCD display module built around an ESP32 board. It gives Arduino and ESP32 projects a small color screen with touch input.

Who It's For / Use Cases

Hobbyists who want a touch-driven interface for a compact project may find a resistive touch TFT module a practical base for that work.

How to Use / Care

1. Start from the Arduino library functions and sample programs when you write your own code.

How to Choose

Choose this module when your project needs a 2.8-inch color screen with touch input. Its 320 x 240 pixel display and 5V operating voltage are the key figures to match against your board setup. Consider the TF-card slot if you need expansion storage, and note that the module supports development in Arduino IDE.

Frequently Asked Questions

Does the screen have touch input?
It has resistive touch, which reads input from pressure on the panel.

What is the screen resolution and color depth?
The display is 320 x 240 pixels and shows RGB 65K colors.

Which driver chip does the display use?
It uses the ILI9341 driver chip.

Does the module include wireless connectivity?
The ESP32-WROOM-32 module integrates Wi-Fi and Bluetooth functions.

What operating voltage does it need?
It is rated for 5V operation.
